Why Scrap Rarely Has a Single Cause

There is a question I hear regularly during visits to PVC (Un-plasticised Poly Vinyl Chloride) pipe extrusion plants:

“What is causing this scrap?”

At first glance, it seems like a reasonable question. A defect appears, scrap increases, and the team starts searching for the root cause. The assumption is that somewhere in the process, a single setting, component, or material characteristic is responsible for the problem.

The reality is usually very different.

Scrap in PVC pipe production is rarely the result of a single isolated failure. More often, it is the result of several small deviations interacting with each other. A formulation may become slightly more sensitive to shear. A temperature profile may drift a few degrees. A die may no longer distribute material exactly as intended. A haul-off may not compensate for upstream fluctuations.

Most of the time , individually, none of these factors may be enough to create scrap. Together, they can push the process outside its stable operating window.

The Three Factors Behind Process Stability

PVC is one of the most demanding materials to process consistently. It is highly shear-sensitive and operates within a relatively narrow processing window. Small changes that seem insignificant in isolation can have a major impact when combined.

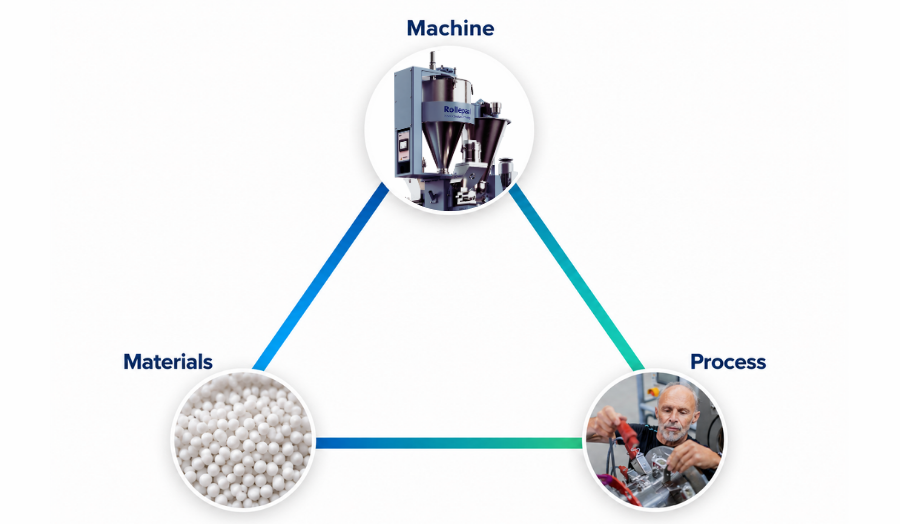

When evaluating scrap generation, it is helpful to think about three interconnected elements:

• Machine
• Materials
• Process

The machine determines how the material is conveyed, compressed, fused, and shaped. The material determines how it responds to heat, pressure, and shear. The process determines how those capabilities are translated into stable production.

The lowest scrap rates are achieved when these three elements are synchronized. When synchronization is lost, defects begin to appear.

Why Scrap Is Often Misdiagnosed

One of the most common troubleshooting mistakes is focusing only on the visible symptom.

A rough surface is treated as a tooling problem. A burning line is blamed on the formulation. Ovality is considered a cooling issue. While these assumptions may sometimes be correct, they often overlook interactions among multiple variables.

For example, thermal degradation may originate from a dead spot in the die-head, but only becomes visible because excessive residence time and elevated melt temperatures accelerate degradation. Wall thickness variation may appear downstream, while the real source is unstable melt delivery from the extruder.

The visible defect is often only the final result of a much larger chain of events.

Material-Related Causes of Scrap

Lubrication Balance

The balance between internal and external lubricants has a direct impact on fusion behavior and melt flow. Excessive lubrication can delay fusion and create weak pipe structures. Insufficient lubrication increases friction, shear stress, and the risk of surface defects such as melt fracture and sharkskin.

Thermal Stabilization

A robust stabilizer package widens the processing window and provides protection against temperature fluctuations and shear spikes. Inadequate stabilization can result in yellowing, brown streaks, black specks, and localized degradation.

Moisture and Volatiles

Moisture in the dry blend or fillers can create porosity, blistering, and poor surface finish. Even small amounts of moisture can affect product appearance and mechanical performance.

Fusion and Gelation

Achieving the correct level of fusion is essential for pressure pipe performance. Under-fused material may pass dimensional inspections but fail impact or pressure testing later in the product lifecycle.

Machine-Related Causes of Scrap

Screw and Barrel Wear

Wear changes the conveying characteristics of the extruder and alters the shear profile. As wear increases, residence time becomes less predictable and process stability declines.

Dead Spots and Flow Stagnation

Any area where material becomes trapped creates a risk in PVC processing. Because the material is thermally sensitive, trapped material can degrade, carbonize, and periodically break away, creating burning lines and contamination defects.

Die Alignment

Even minor eccentricity between the die and the mandrel can result in uneven wall thickness. Thermal expansion, improper centering, or tooling wear can all contribute to dimensional scrap.

Spider Line Performance

In spider dies, the melt stream is divided and recombined. If pressure, temperature, or relaxation conditions are insufficient, weak weld lines can form and become failure points during pressure testing.

Process-Related Causes of Scrap

Excessive Shear Heating

PVC exhibits non-Newtonian, shear-thinning behavior. Increasing screw speed does not simply increase output; it also increases frictional heating. Excessive shear can push the melt beyond its degradation threshold before it reaches the die.

Incomplete Plasticization

Insufficient temperature or mixing prevents complete fusion of the dry blend. This often results in poor surface quality and reduced mechanical performance.

Cooling and Calibration

Cooling systems do more than solidify the pipe. They influence residual stress, dimensional stability, and long-term performance. Uneven cooling may create ovality, warpage, and internal stress concentrations.

Vacuum Stability

Vacuum calibration directly affects pipe dimensions. Excessive vacuum can create drag marks and instability, while insufficient vacuum can lead to collapse and out-of-spec dimensions.

Haul-Off Synchronization

Even small mismatches between extrusion output and haul-off speed can create wall thickness variation, waviness, and overweight pipe. In many cases, overweight production becomes a hidden form of scrap because material losses are not immediately visible.

The Defect You See Is Rarely the Real Problem

When people think about scrap, they usually think about material that ends up in a grinder.

However, some of the most expensive losses never enter the scrap bin.

An overweight pipe consumes unnecessary raw material. Residual stresses reduce long-term performance. Weak weld lines may only reveal themselves during testing. Process instability increases energy consumption and reduces throughput.

These hidden losses can have a larger financial impact than visible scrap generation.

A Better Way to Think About Scrap Reduction

The best-performing extrusion plants rarely focus on finding one perfect setting. Instead, they focus on maintaining a balance between machine, material, and process.

When a defect appears, the goal is not simply to identify a faulty parameter. The goal is to understand where synchronization has been lost.

This shift in thinking changes the entire troubleshooting approach. Instead of asking, “Which setting is wrong?”, the more useful question becomes:

“Where has the balance between machine, material, and process been disrupted?”

In many cases, that question leads to the real root cause much faster.

Ultimately, the lowest scrap rates are achieved not through isolated optimizations, but through a deep understanding of how machine design, material behavior, and process conditions work together. That understanding is what transforms a stable extrusion line into a consistently high-performing one.

About the author

Dr. Sankha Roychowdhury is a Materials Specialist and Project Leader at Rollepaal with over 20 years of experience in polymer science, product development, and customer support. With a PhD in Materials Science from the University of Twente, he specializes in polymer extrusion, PVC pipe formulation, and process optimization, helping customers and colleagues solve complex materials-related challenges and improve product performance.
