Optimizing Foam Core Pipe Production: Foaming and Extruder Venting

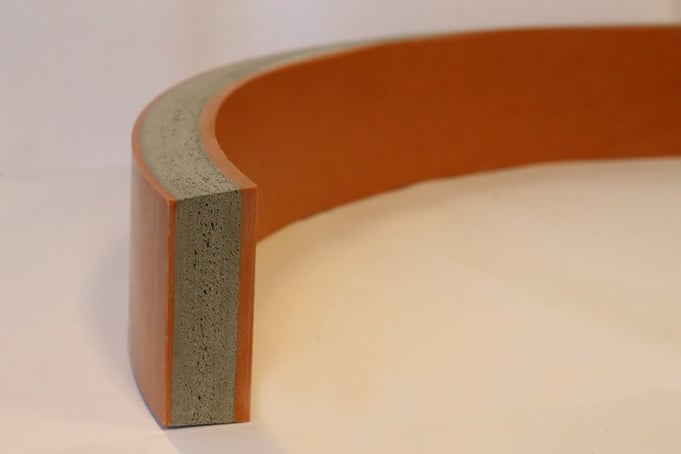

Producing foam core pipe is technically demanding. Achieving even expansion of the gas mixed into the core melt requires a homogeneous melt temperature. Uneven temperatures can lead to variations in wall thickness, showing as thicker or thinner sectors due to differing gas expansion. A successful foam core process requires a balanced formulation-extruder-die combination.

Foam Core Production Requirements

Amorphous polymers like PVC, PS, and ABS are generally easier to foam compared to crystalline polymers such as Polyolefins (PO). This is because amorphous polymers exhibit immediate strain hardening, which helps create a fine foam structure without blisters. PVC foam core formulations often contain fillers like CaCO3, which can help maintain stiffness and allow for higher blowing agent levels.

Extruder Venting Role

The design of the extruder, particularly the venting section, plays a significant role in the foaming process. An early vent design makes foaming considerably easier. This is especially true when processing at higher melt temperatures, as a later vent would extract more of the decomposed blowing agent's gas before the melt reaches the foaming die. An early vent also allows for more screw length downstream for mixing at the screw tip, which is essential for ensuring even foaming.

Technical Considerations

• Melt Temperature Homogeneity: Crucial for even foam expansion and consistent wall thickness.
• Extruder Vent Position: An early vent is beneficial for foaming, particularly with higher melt temperatures and specific blowing agents.
• Screw Design: Sufficient mixing length after the vent is needed for homogeneous melt required for even foaming.
• Polymer Type: Amorphous polymers (PVC, PS, ABS) are easier to foam than crystalline PO due to strain hardening properties.

FAQ Section
